RUBBER HOSE CRIMPING MACHINE MS-51
DESCRIPTION
MS-51 hose crimper machine is famous for its wide crimping range and low cost. It has multifucntional operate panel, which can be easily changed between automatic mode and semi-automatic mode. With a shockproof pressure guage, the operator can know the pressure during the crimping work.
MAIN FEATURES
► Crimping can be done fully automatic, which means automatic crimping and opening without press panel
► Wide crimping range from 6mm to 51mm
► Signal to tell the user when getting the settled diameter
► Double use foot pedal
► Anti dust sponge to protect the dust get in the die base
TECHNICAL DATA
| Model | MS - 51 Hydraulic Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
51 HOSE CRIMPER DIE SETS
| Die No. | Crimping (mm) | Length (mm) |
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 90 |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• UC Control
► BLOCK FOR CONNECTING VALVE SYSTEM
► MULTIFUCNTIONAL OPERATE PANEL

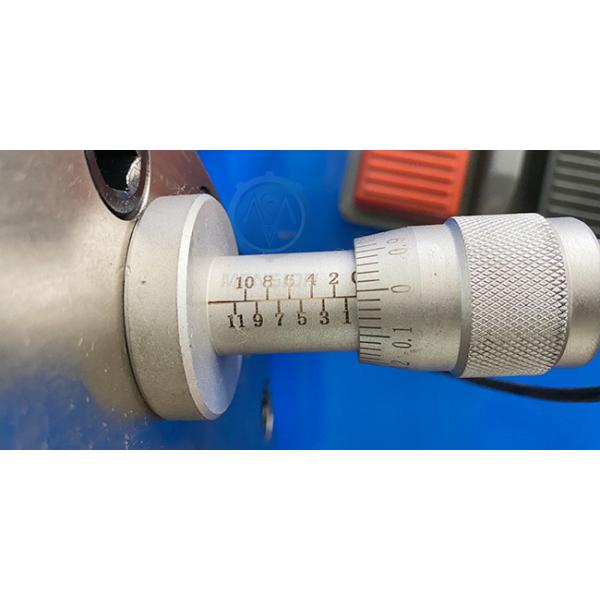

► CRIMPING DIAMETER CONTROL MICROMETER

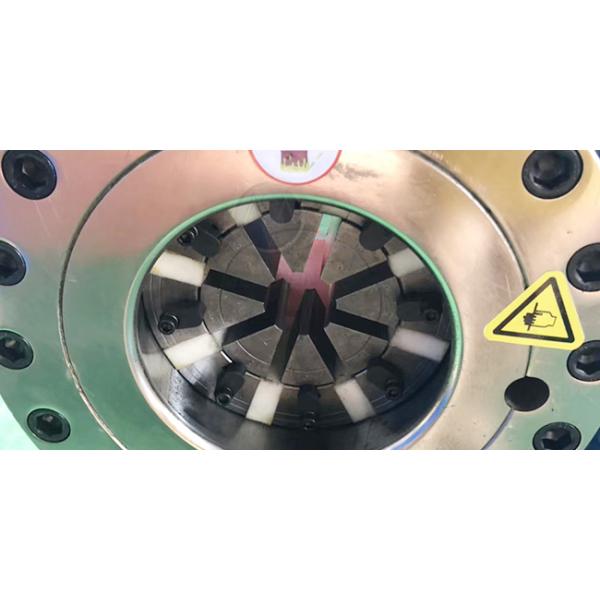

► MOLD WITH HIGH HARDNESS, LONG SERVICE LIFE
► FAST DELIVERY WITHIN 2 TO 7 DAYS
► CRIMPING MACHINE ARE MAINLY USED FOR HYDRAULIC HOSE ASSEMBLY MAKING
