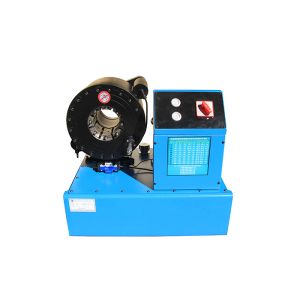

INDUSTRIAL HOSE CRIMPER E38
DESCRIPTION
MS-E38 rubber hose crimping machine is with crimping capacity from 1/4 inch to 2 inch. Crimping head with one piece design, prevent oil leackage problem during working.
MAIN FEATURES
► Quick opening speed, high productivity
► Die sets high hardness up tp HRC63, long service time
► Stable performance with high quality spares
► Crimping reference sheet make crimping more easily
TECHNICAL DATA
| Model | MS-E38 Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) 4SH |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 38 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 4 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
| Hydraulic Oil | 50 (L) |
38 HOSE CRIMPER DIE SETS
| Die No. | Crimping (mm) | Length (mm) |
| 6* | 6.0 - 8.0 | 35 |
| 8* | 8.0 - 10.0 | 35 |
| 10* | 10.0 - 12.0 | 35 |
| 12* | 12.0 - 14.0 | 35 |
| 14 | 14.0 - 16.0 | 60 |
| 16 | 16.0 - 20.0 | 60 |
| 20 | 20.0 - 22.0 | 60 |
| 22 | 22.0 - 26.0 | 60 |
| 26 | 26.0 - 30.0 | 60 |
| 30 | 30.0 - 38.0 | 70 |
| 38 | 38.0 - 46.0 | 70 |
| 46 | 46.0 - 54.0 | 80 |
| 54 | 54.0 - 64.0 | 80 |
| 64 | 64.0 - 69.0 | 80 |
| 69* | 69.0 - 76.0 | 90 |
NOTE
• " * " for non standard mold
• Customized die sets are available with different size or shape
• Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale
• Foot pedal is available to make the hands free
► SIMPLE DESIGN FOR OPERATING, SUITABLE FOR NEW USER IN CRIMPING
► CRIMPING DIAMETER CONTROLLED BY A HIGH ACCURATE MICROMETER
► DOUBLE CONICAL MASTER DIE AND CRIMPING CYLINDER MAKING TECHNOLOGY, HIGH FORCE
► MOTOR WITH COOPER WIRE ALUMINIUM SHEEL, GOOD HEAT RELEASING
► HYDRAULIC HOSE ASSEMBLY SAMPLES
